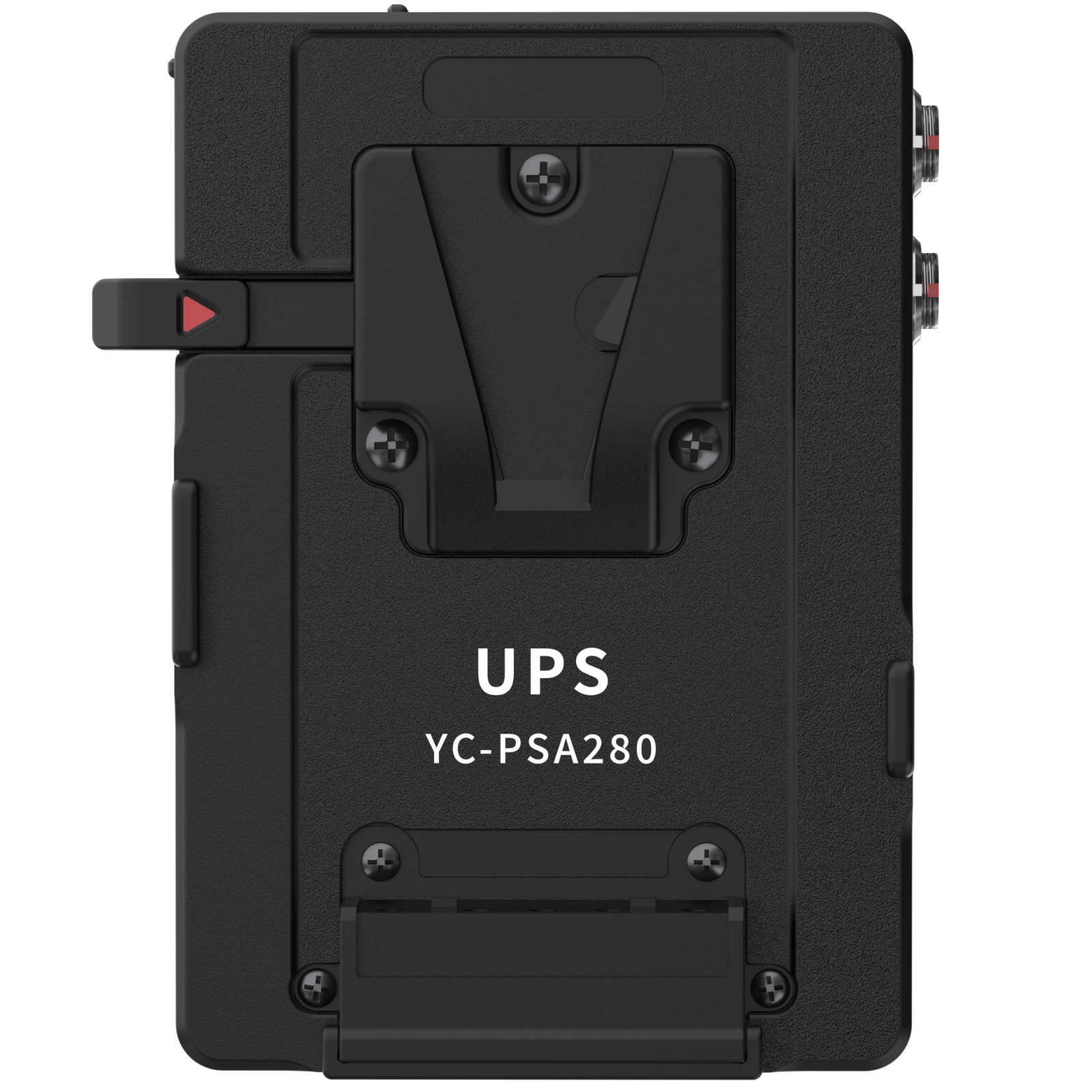

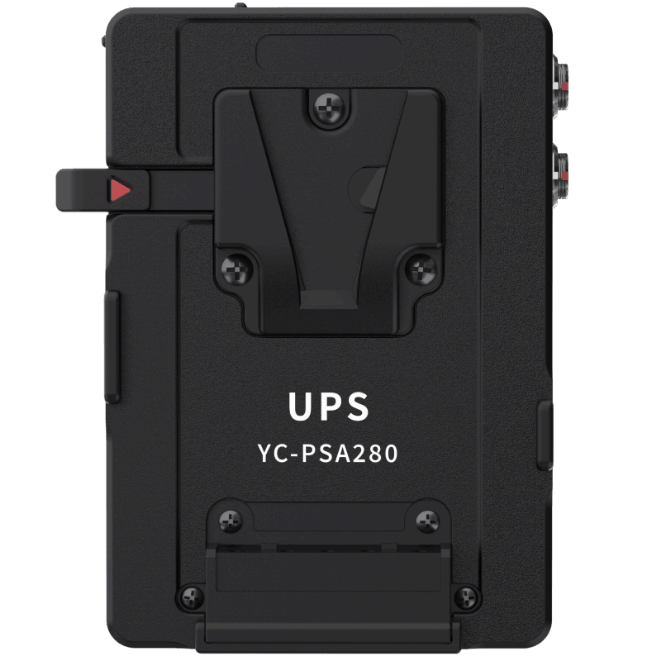

V-Mount Hot-Swap UPS
YC-PSA280
Hot-swap uninterrupted power supply with built-in 14.4V 36Wh capacity

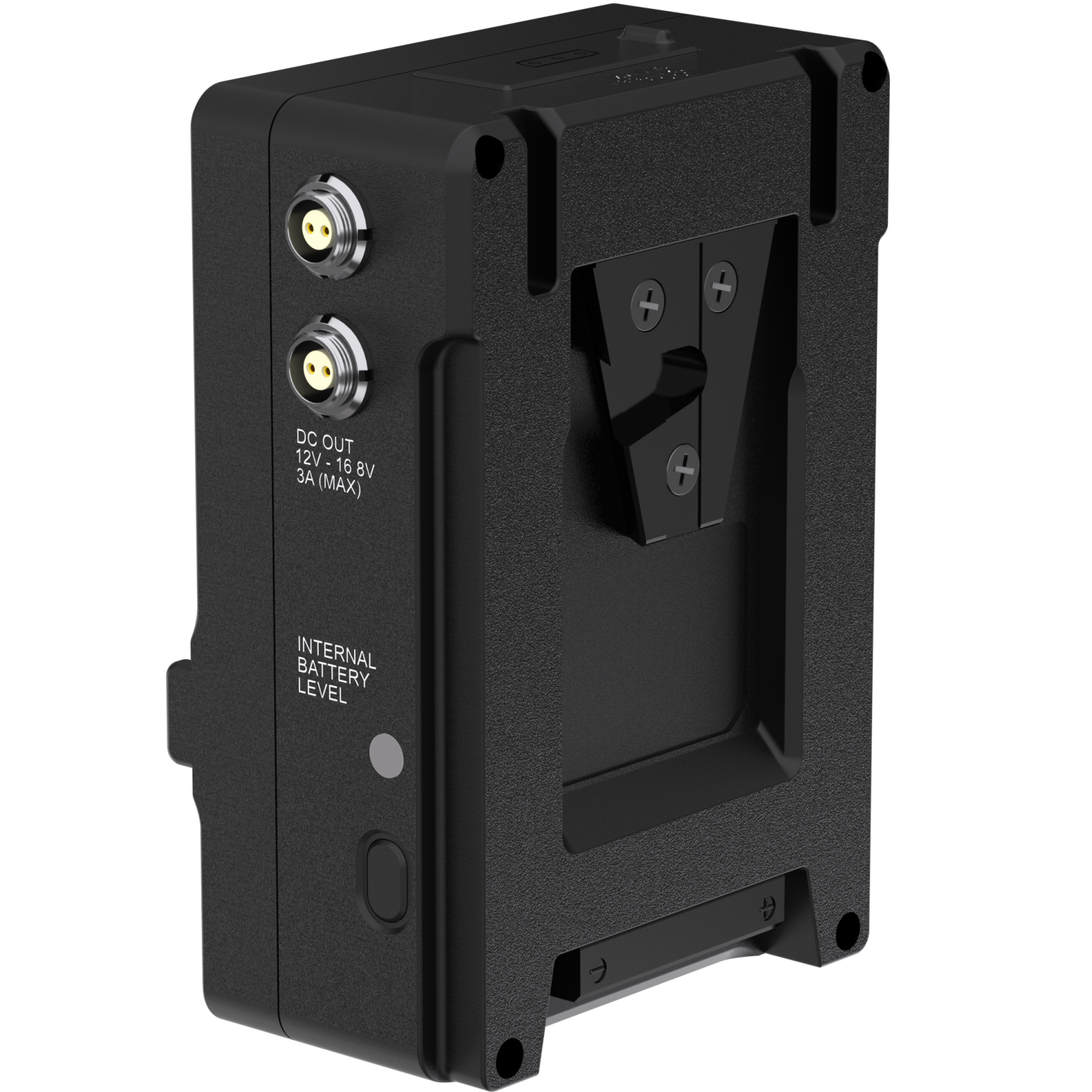

Equipped with 2× D-Tap and 2× LEMO connectors
12-fold BMS protection
A+ high-rate cells for instant startup of high-power devices
3-pin D-Tap connector, reversible plug-in
Three-color LED indicator for clear battery status
CNC metal casing for durability and premium look
Product Consultation
Product Features
High-rate Samsung cells
Supports hot-swapping

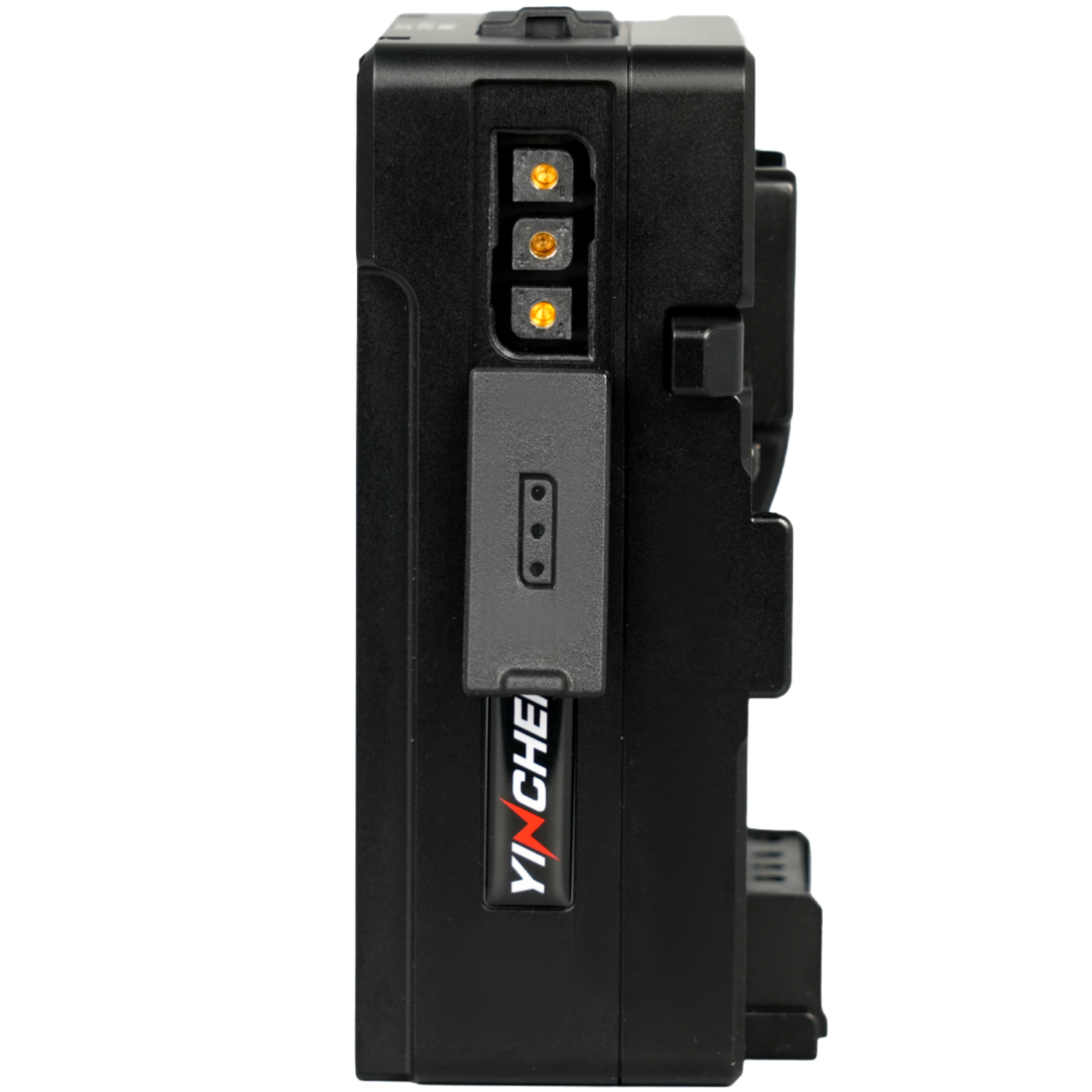

3-Pin D-TAP connector, reversible insertion
Built-in 36Wh capacity
Product Parameters
YC-PSA280


Capacity36Wh 2500mAh
Voltage

14.4V

3-Pin D-Tap Output12-16.8V,3A(Max.)
2-Pin LEMO Output12-16.8V,3A(Max.)
BP Electrode Interface12-16.8V,20A(Max.)
Dimensions112*87*51mm
Weight0.55kg
